A few years ago, I decided to invest in a high quality scanner. The idea was that from my childhood, dozens of old photo albums should be digitized and preserved, scattered around the boxes. You know how these projects go. Easy to start. Looking at it, not so much. Over the years, I’ve been back to him. But years, I am running in road blocks. That is, driver support. You saw what started as a functional scanner turned into a scanner that worked to some extent, and eventually in a scanner that would not show my MacBook at all.
If you know my relationship with me and Tech, you will understand why just tossing the scanner didn’t feel right. It still has power. He was still appreciated. But the world of software had moved forward, and like a tech, it was left behind. He forced me to think. It has become a better way. I had a raspberry pie 4 that I had previously used for the PI Hole project. It was no longer working. I remembered reading that the Saiyan project supported extensive scanners, including Canon’s older series.
So, if I get the PI to work as a middleman, handle the USB connection and distribute the scanner to the network, I may be able to resurrect it. It seemed to be like a bit of engineered weekend and project that was challenging to tickle my choice. Obviously, I dive in fine.
Sorting all this
Dhu Bhutani / Android Authority
I started by installing the Rasbery Pi Os Light because I didn’t just need access to the terminal to access SSH and install drivers. Once the PI was arranged and updated, I installed the sensible utility. San, the purpose of the San, the purpose of this, is to bring scanners access to open source through any ordinary API. My surprise is that Canon Lloyd 220 immediately. It was shown with a simple “scanned” command. This is the moment that gave me confidence that this project can only work. From there, I created the PI to expose the scanner on the network using the snad, which is primarily a lightweight demon that shares sensible synchronous devices in your LAN. I added the appropriate IP limits to the conference files, ensuring that the service was going on, and confirmed that I could detect the scanner with my Mac.
Open source does not need a terminal script, you can also find nearly experience.
I could stop there and make some small scripts to communicate with it, or trigger the scan on the terminal, but I wanted a clean, browser -based solution that could allow me to scan anywhere on the network. Scodgers came at this place. It is an open source web front for Saiyan, made with modern UI and focuses on simplicity. Even better, I can host it on my Synology NAS, who was already running a Doker and had a lot of resources.
The deployment of the scans was straightforward. I pulled the container using the Doker’s CLI, passed the PI in the PI using environmental variables, and formed it to run in a host networking mode so that it would not be involved in port mapping matters. I also set up a joint folder with the NAS so I can store the scanned files to the main location. Within a few minutes, I had a completely active web interface that allows me to control the Canon Scanner from any browser. I can change the previews, scans, formats, and adjust the resolution – all this without touching the scanner or dealing with a local app.
Believe me, when I made the first scan, I jumped a little. I didn’t really expect this project as well as its work. This page came through clean and sharp, such as using the outdated ancestral app, and was stored directly into the joint folder, which is ready for email or protected documents. I didn’t have to reinstall drivers, mess with compatible layers, or plug the scanner into my Mac. He just worked. And whenever I need it, work is going on every time.
Breathe of new life in old hardware
Dhu Bhutani / Android Authority
Look, I always have a soft spot for good hardware. Not shiny or more designed tech, but easy tools that perform their job well. My Canon Lloyd 220 Scanner is one of them. That is why I chose it in each one. This is a USB -powered photo -focused flat bed that always provides razor sharp scan, runs quietly, and only one thing. It did not take much space, nor did it need a dedicated power adapter. These are both excellent facilities. And most importantly, I have not yet found a real alternative for it that does not cost hundreds.
The problem was not the scanner itself. It was a software environmental system around it. Since the McCons was developed with architecture changes and the upgrade of the major operating system, the driver’s support gradually disappeared. Lack of better words, my perfect functional scanner no longer works with my computer. Then I tried third -party tools such as View Scan, which worked but came up with a high price and a lowly interface, which did not feel that it was on modern Mac. I really should not pay any other software to run and run my hardware. Finally, I lost and threw the scanner on a shelf. It stayed there for months when I relied on phone apps to scan the documents. And when they were fine in a pinch, I never lose clean edges, high resolution, and consistency that I received from my scanner.
Scanser and Sai made my decades older scanner better than ever.

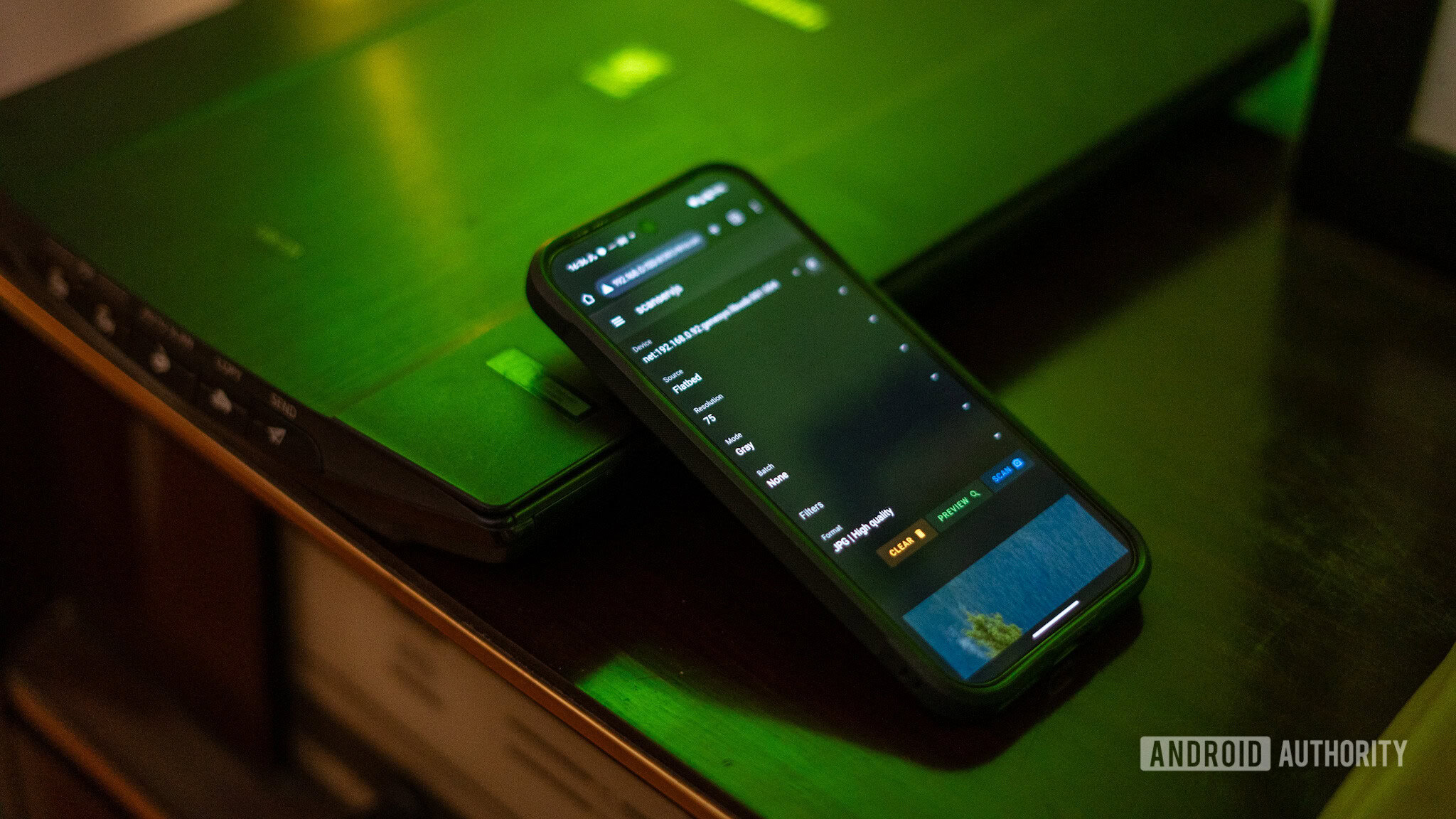

The use of the same scanner now feels better when it was plugged directly into my computer. It is completely duplicated from any one device. Anyone on the network can use it, and it doesn’t matter if they are on Mac, PC, or even a tablet or smartphone. The browser interface is responsible and clean, and this basic document handles everything from scan to high resolution tiff output. The scanner himself is still doing the same thing he has always done, but it has become a smart, more accessible part of my workplace.
The interesting thing about this project is that none of them feel like a hack. The experience is smooth and permanent. The PI quietly takes the duties of scanning in the background. NAS takes care of storage. Scanzers wrap everything in a clean interface. It feels like a modern, modular method of using less and more old hardware like work.
He also reminded me of how much these open source tools are really worth. Without sensible and scanners, this setup may not have worked. The Dokar and Rasberry Pie Environmental System made it easier to sew everything together without writing a custom script or setting anything from the source. The best thing is that it all runs quietly in the background. I don’t need to think about it anymore. I open a browser, scan and move on.
Old hardware, new tricks
I just wanted a reliable way to scan the documents, and in this process, I ended up something better than scanner software out of any box I used. It operates fast, permanent and any home device. I didn’t have to upgrade or replace anything.
I wouldn’t say that it is for everyone. If you scan twice a year and already is a new printer that has scanner built -in, you may be fine. But if you have an old gear around you and a raspberry pie that you are not using, this is a real useful plan to cope with. It’s easy enough to finish in a afternoon, and the final result is amazingly polished.
